How do I connect the optional strap for the Ease base?

If any split setup is being installed, plastic connecting straps are provided (one per base) to secure the bases together.

Step 1

With the bases in their desired location, slightly loosen both legs to allow the strap to fit on the leg bolt, between the leg washer and frame.

Step 2

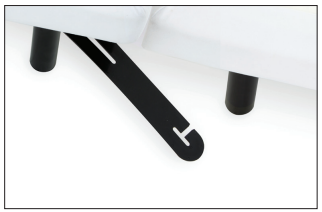

Slide side (a) of the connecting strap onto the leg bolt. Swing the strap and connect side (b) to the leg bolt. Secure the strap by shifting to the left.

Step 3

Re-tighten legs. Do not over-tighten. Use the remaining strap and repeat on the other end of the base.
